Castle Acoustic
Castle 5.1 Home Theatre Loudspeaker System CONWAY 3; Richmond 3i; Bastion; CUBE 2012
Specifications

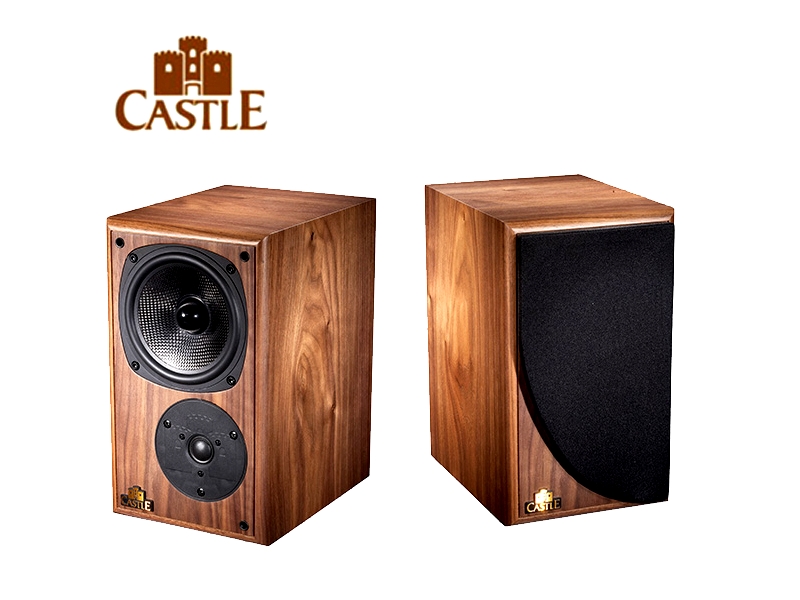

| Richmond 3i | Type: Bass reflex, rear firing port Frequency Response: 60Hz - 20kHz Recommended amplifier power: 15 - 75 Watts Crossover frequency: 3.6kHz Drivers: 1 x 19mm Soft Dome | 1 x 130mm Woven Kevlar Sensitivity: 88dB Dimensions: 330 x 170 x 230mm (Width x Height x Depth) Weight: 4.2kg / 9.24lbs | |
| CONWAU 3 | Frequency Response 40Hz-20kHz | |
| Recommended amplifier power: 15 - 75 Watts | ||
| Crossover frequency: 3.6kHz | ||
| Drivers: 1 x 19mm Soft Dome | 1 x 130mm Woven Kevlar | ||
| Sensitivity: 88dB | ||
| Dimensions: 330 x 170 x 230mm | ||
| Weight: 4.2kg / 9.24lbs | ||

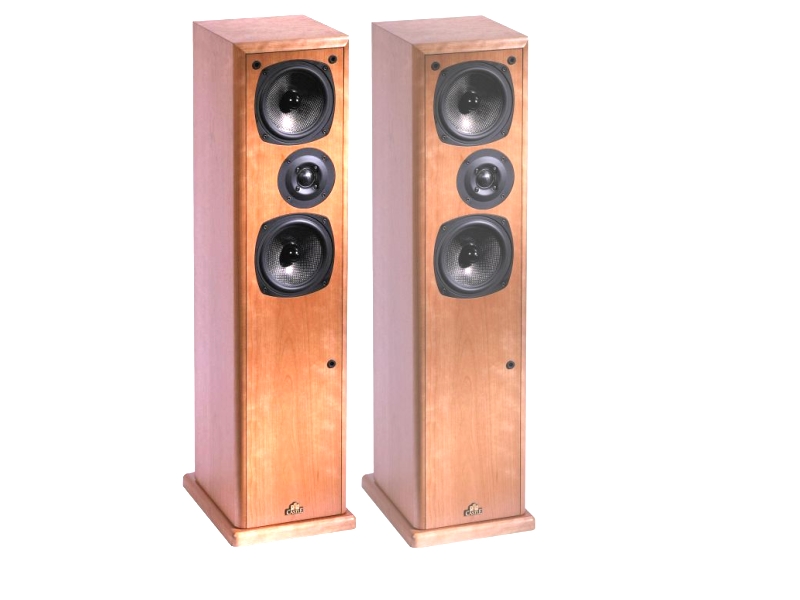

| Castle Conway 3 | Frequency Response 40Hz-20kHz | |
| Amplifier Requirements 25-175 watts | ||
| Frequency Response 40Hz-20kHz Amplifier Requirements 25-175 watts System Type Downward firing reflex | ||
| Bass Unit 2 x 150mm (2 x 6 in.) woven carbon fibre coned, cast chassis | ||
| Treble Unit 28mm (1.25 inch) soft dome | ||
| 925mm X 220mm X 270mm | ||

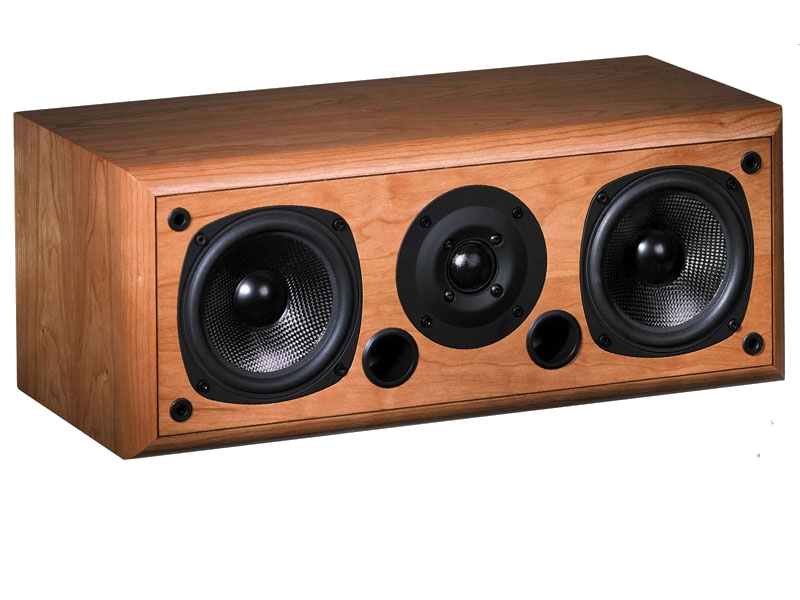

| CASTLE BASTION, CENTRE SPEAKER | Frequency Response: 65Hz-20kHz. | |
| Nominal Impedance: 8 ohms. | ||
| Sensitivity: 88dB for 1w at 1m. | ||
| Amplifier Requirements: 25-150 watts. | ||
| System Type: Reflex. | ||
| Bass Unit: 2 x 130mm (5 in.) woven carbon fiber coned, cast chassis. | ||

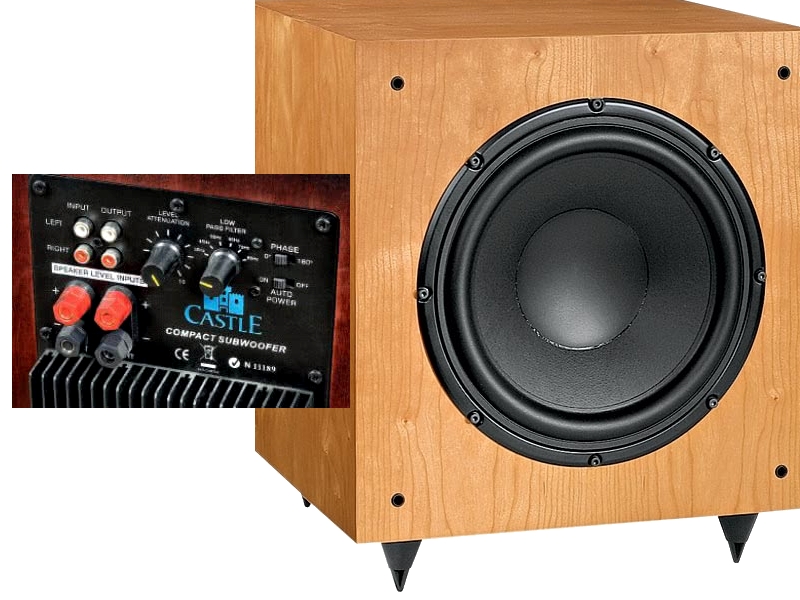

| Castle CUBE | ActiveSubwoofer | |
| Amplifier is equipped with a soft limit circuit power Time Power Sense Limiter - to reduce the risk of high harmonic distortion. | ||
